    Water Resistant Full IP65 Panel PC / Touch Panel Computer For Human Machine Interface

    Ask Lasest Price
    Brand Name : Shinho
    Model Number : SC15W
    Certification : CE , FCC , RoHS
    Price : Negotiable
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability :
    Delivery Time :
    • Product Details
    • Company Profile

    Water Resistant Full IP65 Panel PC / Touch Panel Computer For Human Machine Interface

    15" Waterproof IP65 Panel PC 1000 Nits Outdoor Sunlight Readable



    Features

    1) 15 inch industrial LCD Panel


    2) 5 wire Resistive Touch


    3) Intel® celeron J1900, 2.0GHz, quad core, fanless


    4) RAM 2G DDR3, SSD 32GB


    5) Resolution 1024*768 (4:3)

    6) 1000nits, sunlight readable

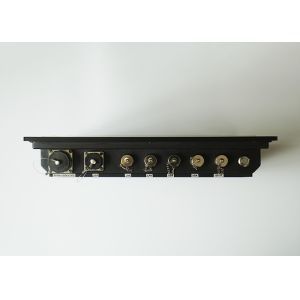

    7) I/O interface: 1x COM RS232, 2x LAN, 4x USB, 1x VGA, 1x HDMI,1x SPK+MIC.


    8) Waterproof Full IP65


    15" Panel PC Applications


    Industrial automation


    human Machine Interface


    Marine control system


    welding industry


    supervisory control


    numerical control device


    Accessories


    Power adapter


    waterproof VGA/RS232/LAN/USB cable


    touch driver


    touch pen


    Specification


    Model:SC15W
    PC
    CPUIntel® celeron J1900, 2.0GHz, quad core, fanless
    ChipsetIntel ValleyView SSA-CUnit
    Memory2G DDR3, (4G optional)
    Hard Drive Capacity32G SSD
    Hard Drive OptionalSSD: 64G,128GB,256GB
    HDD: 500GB,1TB
    GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
    AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
    NetworkOnboard Realtek RTL 8111E Gigabit Ethernet controller
    Wireless NetworkWIFI optional
    I/O Interface1 xCOM RS232, 2 xLAN, 4xUSB, 1xVGA, 1xHDMI,1 x SPK+MIC.
    Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian etc.
    LCD panel
    Panel size15"
    Resolution1024x768
    Aspect ratio4:3
    Support Color16.7M colors
    Brightness (cd/m²)1000 nits, sunlight readable
    Response time10ms
    Contrast ratio1000:1
    View angle80°/80°/80°/80° (R/L/U/D)
    Touch panel
    Touchscreen Type5 wire resistive touch
    Surface Hardness3H
    Luminousness90%
    Touch InterfaceUSB
    Touch response time2ms
    Working Life>35 million times
    Touch options(10 point capacitive touch optional)
    Power Supply
    External Power SupplyAC 100 - 240V
    Working voltage9-24V wide voltage
    Power consumption≤30 W
    Enclosure
    MaterialAluminum Alloy front bezel + High strength cold rolled steel back case
    ColorBlack( white, Silver , color can be customized )
    VESA mounting100×100mm
    IP-gradeIP65
    Operating Environment
    Temperature Rangeoperating: -10 to 60°C, storage :-20 to 80°C
    Relative humidity5%~95% @ 40° C, non-condensing
    Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    Packing Details
    Net weight6KG
    Gross weight8KG
    Product Dimension35.2×28×5 cm
    Packing size53×47×19 cm
    AccessoriesPower adapter, waterproof VGA/RS232/LAN/USB cable, touch driver, touch pen
    Other
    Mounting (options)1) provide wall bracket for wall-mounting, VESA 100×100mm
    2) provide stable metal holder to support the monitor
    Warranty1 year warranty

    Drawing
