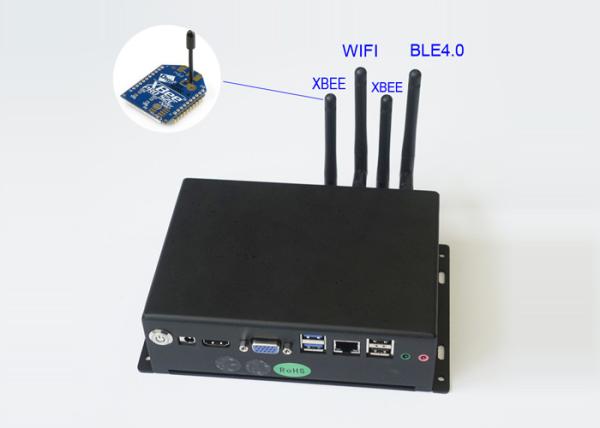

J1900 Processor Industrial Box PC With WiFi Bluetooth And 2 XBEE PRO S2C Modules
Features
Advantages
Applications
ATM
Pos machine
vending machine
Digital signage
Industrial automation
kiosk
machine control
telecomommunication
laser cutting machine
CNC machine
Specification
| Model: BOXPC-620 | |
| PC | |
| CPU | Intel® Celeron J1900 , quad core , 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 2G DDR3 (4G,8G optional) |
| Hard Drive Capacity | 32G SSD (64G,128GB,256GB optional) |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1×Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| Bluetooth | BLE4.0 |
| XBEE | 2*XBEE PRO S2C 63mW wire antenna Zigbee |
| Front I/O Ports | 1*DC, 1*HDMI, 1*VGA, 2*USB3.0, 2*USB2.0, 1*RJ45, 1*Audio IN/OUT,1*Power Button |
| Rear I/O Ports | 2*RS232 |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤30W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver , Black, white, color can be customized |
| VESA mounting | 75×75mm |
| Operating Environment | |
| Temperature Range | operating: -20 to 65°C, storage :-40 to 80°C |
| Relative humidity | 20%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 0.65kg |
| Gross weight | 1.5kg |
| Product Dimension | 188*122*52mm |
| Packing size | 240*200*110mm |
| Accessories | Power adapter,embedded screws,user manual,warranty card |
| Other | |
| Mounting (options) | embedded mounting screws |
| wall/desk mounting brackets (optional) | |
| Warranty | 1 year warranty |
