    400 Brightness Nits Industrial Touch Panel PC Rugged Aluminium Enclosure

    19" RFID Touch Screen Panel PC With Rugged Aluminium Enclosure


    Introduction


    This is a durable 19" Flat Bezel Touchscreen Panel PC based around Intel® Celeron J1900 processor technology. The system delivers high performance housed in a state of the art mechanical package incorporating Projected Capacitive 10 points Touch Technology with a borderless flat surface design. The bezel offers IP65 wateproof and dustproof, thus making it an attractive option for various kiosk/ multimedia applications, alongside more traditional industrial place, too.


    Features

    • 19” 4:3 (1280x1024) LCD Panel with LED Backlight
    • Projected Capacitive Multi-touch Screen
    • Fanless Design with quad core Intel® Celeron J1900 Processor
    • IP65 Front Panel Protection
    • Mounting Methods: Open frame, embedded mounting
    • 6 COM, w/ 2 Isolated RS-232/ 422/ 485
    • 1 USB 3.0, 1 USB 2.0, 4 COM RS232, 2 RJ45, 1 VGA/HDMI/Audio OUT/MIC IN/POWER DC
    • DC 12V
    • WiFi, RFID included

    Applications


    Proudction line auto control


    Supply chain management and application


    Human Machine Interface (HMI)


    Railway station


    Attendance check machine


    Logistics management system


    Security Turnstile


    Specification


    Model: SC19
    PC
    CPUIntel® Celeron J1900, quad core, 2.0GHz, fanless
    ChipsetIntel ValleyView SSA-CUnit
    Memory2G DDR3, ( Max. 8G)
    Hard Drive Capacity32G SSD
    Hard Drive OptionalSSD: 64G,128GB,256GB
    HDD: 500GB,1TB
    GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
    AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
    Network1×Realtek RTL 8111E Gigabit Ethernet controller
    Wireless NetworkWIFI
    I/O Interface1×USB 2.0,1×USB 3.0, 4 x COM RS232, 2 x RJ45
    1×VGA/HDMI/Audio OUT/MIC IN/POWER DC
    Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian etc.
    LCD panel
    Panel size19"
    Resolution1280*1024
    Aspect ratio4:3
    Support Color16.7M colors
    Brightness (cd/m²)400+
    Response time5ms
    Contrast ratio1000:1
    View angle80°/80°/80°/80° (R/L/U/D)
    Touch panel
    Touchscreen TypeProject Capacitive Touch (10 points)
    Touch InterfaceUSB (RS232 optional)
    Touch response time2ms
    Luminousness90%
    Surface Hardness7H
    Working life>50 million times
    Touch options( 5 wire resistive touch, IR touch optional)
    Power Supply
    External Power SupplyAC 100 - 240V
    Working voltageDC 12V
    Power consumption≤45W
    Enclosure
    MaterialAluminum Alloy
    ColorSilver , Black, white, color can be customized
    VESA mounting75×75mm/100×100mm
    IP gradefront panel IP65 waterproof
    Operating Environment
    Temperature Rangeoperating: -10 to 60°C, storage :-20 to 80°C
    Relative humidity5%~95% @ 40° C, non-condensing
    Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    Packing Details
    Net weight7.5kg
    Gross weight8.5kg
    Product DimensionTBD
    Packing size74×45×18 cm
    AccessoriesPower adapter,embedded screws,user manual,warranty card
    Other
    Mounting (options)open frame
    embedded mounting screws
    wall mounting brackets (optional)
    desk stand holder (optional)
    CustomizationRFID
    Warranty1 year warranty
    CertificatesCE,FCC,RoHS

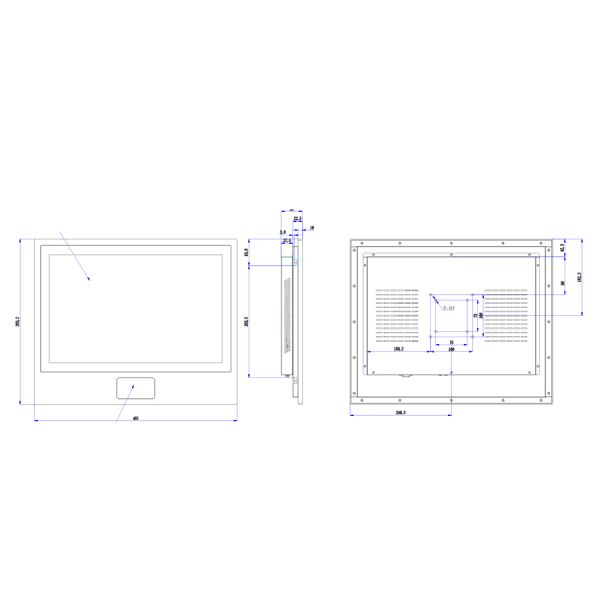

    Drawing
