    Fanless Industrial Touch Panel PC 21.5'' Widescreen 1920*1080 Full IP65 Waterproof

    Ask Lasest Price
    Brand Name : Shinho
    Model Number : SC215
    Certification : CE , FCC , RoHS
    Price : Negotiable
    Payment Terms : T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
    Supply Ability :
    Delivery Time :
    • Product Details
    • Company Profile

    Fanless Industrial Touch Panel PC 21.5'' Widescreen 1920*1080 Full IP65 Waterproof

    21.5'' Widescreen Full IP65 Waterproof Stainless Steel FanlessIndustrial Touch Screen Panel PC


    Feature


    1. IP65 sealed stainless steel enclosure, Sealed I/O cables included.

    2. Industrial LCD panel, 1920*1080 HD resolution, wide viewing angle, high nits, true color.

    3. Adopt 5 wire resistive touch screen, high precision, durable, anti-interference. support touch with glove.

    4. High performance motherboard, 7x24 continuous operation.

    5. Fully sealed and fanless design, full IP65 waterproof.

    6. 1000 nits, sunlight readable optional.

    7. Other connectors also support customization.


    Specification


    Model:SC215
    PC
    CPUIntel® Celeron J1900, quad core, 2.0GHz, fanless
    Memory2GB DDR3 (4GB, 8GB optional)
    Hard Drive Capacity32GB SSD
    Hard Drive OptionalSSD: 64GB, 128GB, 256GB
    HDD: 500GB,1TB
    GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
    AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
    NetworkOnboard Realtek RTL 8111E Gigabit Ethernet controller
    Wireless NetworkWIFI
    I/O Interface4*USB+1*LAN+1*DC
    Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian etc.
    LCD panel
    Panel size21.5"
    Resolution1920*1080
    Aspect ratio16:9
    Support Color16.7M colors
    Brightness (cd/m²)400 nits
    Response time5ms
    Contrast ratio1000:1
    View angle80°/80°/80°/80° (R/L/U/D)
    Touch panel
    Touchscreen Type5 wire resistive touch
    Touch solutionEETI
    Touch InterfaceUSB (RS232 optional)
    Touch response time<8ms
    Luminousness90%
    Surface Hardness3H
    Working Life>35 million times
    Touch options(capacitive touch, IR touch optional)
    Power Supply
    External Power SupplyAC 100 - 240V
    Working voltageDC 12V (9-36V wide voltage optional)
    Power consumption≤45W
    Enclosure
    Materialstainless steel case
    ColorSilver
    VESA mounting75x75mm/100x100mm
    IP-gradeFull IP65 waterproof
    Operating Environment
    Temperature Rangeoperating: -10 to 60°C, storage: -20 to 80°C
    Relative humidity5%~95% @ 40° C, non-condensing
    Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    Packing Details
    Net weight8.5KGS
    Gross weight12KGS
    Product Dimension53.16x32.82x5.74cm
    Packing size74x45x19 cm

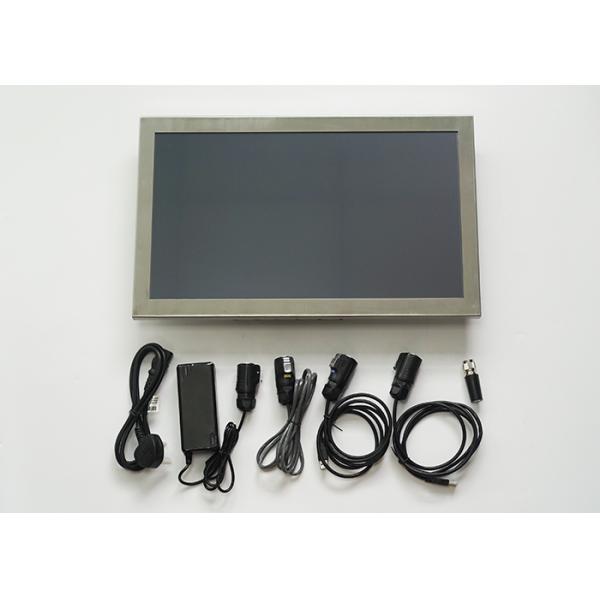

    AccessoriesPower adapter, waterproof LAN/USB cable, power cord
    Other
    Mounting (options)1) wall bracket for wall-mounting, VESA 100x100mm
    2) stable metal holder to support the monitor
    CertificatesCE, FCC, RoHs
    Warranty1 year warranty



    More Pictures


    Drawing




    21.5'' Stainless Steel Fanless Industrial Touch Screen Panel PC Application

    food manufacturing


    outdoor water dispenser


    outdoor water dispenser


    Packaging testing equipment


    Dairy factory


    CNC control
