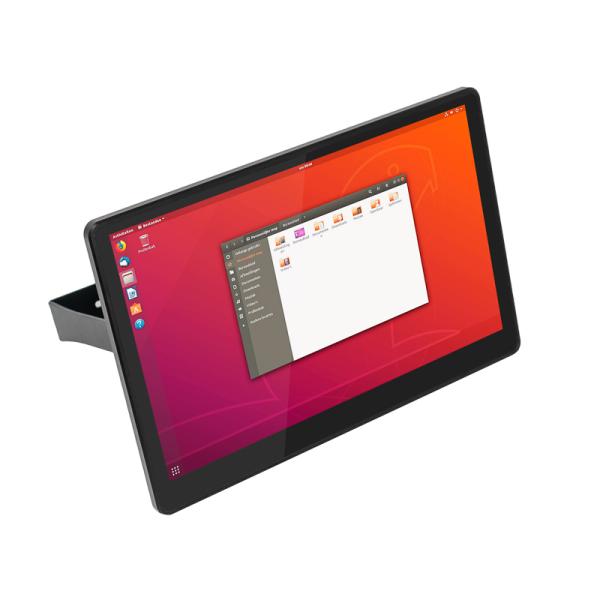

Ubuntu All In One PC RK3288 IP65 Waterproof 13.3inch LCD 1920*1080 With Capacitive Touch
Feature
1. Made of sturdy and durable aluminum Alloy front bezel+High
strength cold rolled steel back case.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Fully sealed and fanless design, full IP65 waterproof, Sealed
I/O with cable set included.
4. Adopt multi-points PCAP touch panel, high sensitive and
fast-response.
5. Covered with 2mm Glass(anti cooling lubrication (spray) and
oilmist), vandalproof.
6. High performance motherboard, fanless design, 7x24 continuous
operation.
Specification
| Model:SC133 |
| PC |
| CPU | RK3288 1.6GHz Quad core A17 AP |
| Memory | 2G (4G, 8G optional) |
| Hard Drive Capacity | 8GB |
| Wireless Network | RJ45, WIFI, 3G, 4G , TD-LTE (optional) |
| I/O Interface | 1xRJ45, 1xPOWER DC |
| Operation System | Android 10.0, Ubuntu |
| LCD panel |
| Panel size | 13.3" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits |
| Response time | 5ms |
| Contrast ratio | 800:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Touch panel |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | (5 wire resistive touch, IR touch optional) |
| Power Supply |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure |
| Material | Aluminum Alloy front bezel+High strength cold rolled steel back
case |
| Color | Silver, Black, white, color can be customized |
| VESA mounting | 75x75mm/100x100mm |
| IP grade | Full IP65 waterproof |
| Operating Environment |
| Temperature Range | operating: -10 to 60°C, storage: -20 to 70°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details |
| Net weight | 5 kg |
| Gross weight | 6 kg |
| Product Dimension | 32.28x19.77x3.5cm |
| Packing size | 53x47x18cm |
| Accessories | Power adapter, LAN cable, Power cord |
| Other |
| Mounting | stand holder |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
FAQ
Q :Are you manufacturer?
A: Yes, we are manufacturers.We can provide OEM / ODM customized
service according to our customers’ various application and
demands.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized
with your logo if needed. If require OEM, will see detailed
requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the
customer confirm the specification and price, they can order the
sample firstly for the testing and evaluation.
Q: How to order and pay?
A: We accept T/T (bank transfer), Western Union, Trade Assurance.
Q: What's Your Products Warranty?
A: We Offer 12 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price
for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement,
and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around
3-5 working days. For some remote place, delivery time maybe a
little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If
for the hardware problem , we couldsend the parts or components and
teach customer to fit if they have technician or can also send
backto us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 8 years
experiences
