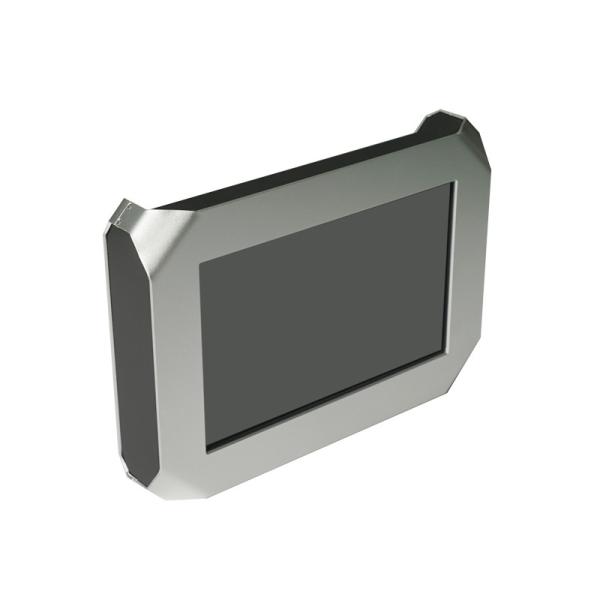

Customized Magnetic Attraction Mounting Panel PC, Built-In RFID
Reader For Different Applications
Key Highlights
- Fully enclosed design, front IP65 waterproof , fully dustproof.
- Industrial LCD panel, wide viewing angle, high nits, true color.
- Adopt multi-points PCAP touch panel, covered with 2mm tempered
glass for vandalproof.
- High performance motherboard, 7x24 continuous operation.
- Built-in RFID Reader(Dual frenquency 125khz 13.56MHz).
- Support magnetic attraction on back base.
Products
Project Capacitive Touch (10 points)/ Resistive Touch (Optional
Protective Glass)
The Panel PC is highly resistant to cold temperatures, wet fingers,
and dusty conditions. Plus, the protective glass serves to protect
the display against sharp foreign objects, meaning the screen is
still operable even with deep scratches on the surface.
Low Power Consumption
This Panel PC is designed for low power consumption and effective
heat dissipation, making it durable for long-term usage in
production facilities. It is the ultimate energy-efficient
solution.

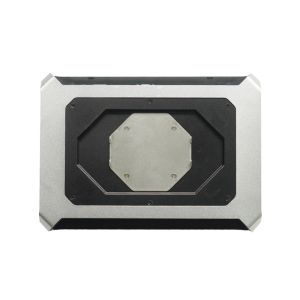

Magnetic Attraction Mounting/ Wall and VESA Mounting
Several mounting solutions such as rear and VESA mounting allow
users to choose the most suitable mounting options for their
application.
Application
Benefit from the intelligent combination of an IPC and touch
monitor: Panel PCs are ideal for installation in control cabinets
with their robust, IP65-protected fronts. They are a powerful
platform for controlling, programming, operating, or monitoring
machines and systems. It is also suitable for many non-industrial
applications, including vending machine, and car park automation.
Our operator panel is a reliable, cost-effective solution to your
application’s processing requirements.
TECH SPECS
| Model: SC121 |
| PC |
| CPU | Intel® Core i3-6100U, dual core, 2.3GHz |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 4G DDR3 |
| Hard Drive Capacity | 32G SSD |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo
quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |

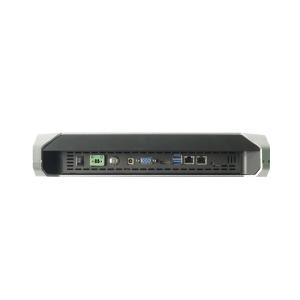

| I/O Interface | 2xUSB 3.0, 2xRJ45, 1xVGA/HDMI/Audio OUT/POWER DC/Power button |
| 1xPhoenix terminal/Power switch button |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
| LCD panel |
| Panel size | 12" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400+ |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | (5 wire resistive touch, IR touch optional) |
| Power Supply |
| External Power Supply | AC 100-240V |
| Working voltage | DC 24V |
| Power consumption | ≤35W |
| Enclosure |
| Material | ABS+Aluminum alloy |
| Color | Black, silver, white, color can be customized |
| IP grade | Front panel IP65 waterproof |
| Operating Environment |
| Temperature Range | Operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details |
| Net weight | 4.5kgs |
| Gross weight | 5.15kgs |
| Product Dimension | 34.96x24.96x7.6 cm |
| Packing size | 45x17x37CM |
| Accessories | Power adapter, user manual, warranty card |
| Other |
| Mounting (options) | Embedded mounting |
| Wall mounting brackets (Optional) |
| Desk stand holder (Optional) |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
Our Services
1. We offer a life-long maintenance that is free in the first year.
2. In the first year after you received the products , if there is
quality problem happening to the products, pls send us the pictures
or video to showing the fault phenomenon, so can help our
technicians to analyze the cause of problem, then we will send you
the necessary spare parts and teach you how to repair it, free of
charge.
3.If we can't find out the cause of failure, you can return the
defective product to us, we will repair it and resend it to you in
one week. If the defective product can't be repaired, we will send
you a new one for replacement, free of charge.
4. Please note that man-made damage is out the scope of free
warranty.
5. After the first year of free warranty, we will charge you the
factory cost for the replaced accessories, free for maintenance.
6. If your order comes to a certain quantity, we will provide you
some spare units, for replacing the defective product. The number
of spare units depends on the quantity of your order and the model
of the products.
7. Pls feel free to contact our customer service team. After
receipt of your complaint feedback, we will appoint the qualified
person to contact you within 12 hours and solve your complaint.
