| Brand Name : | Sihovision |
| Model Number : | SM1185 |
| Certification : | CE, FCC, RoHS, ISO9001 |
| Price : | negotiable |
| Payment Terms : | T/T , Paypl , L/C , D/A , D/P , Western Union , MoneyGram |
| Supply Ability : | |
| Delivery Time : | |
Intel Core I7 1185G7E Mini PC Win10 DDR4 M.2 SSD Computers Nuc Mini Pc Suppliers
Feature
1. Aluminum Alloy tough appearance structure.
2. Nano-ITX industrial motherboard.
3. Intel Core 11th i7-1185G7E/ i5-1135G7/ i3-1115G4.
4. 2 * SO-DIMM RAM, MAX 64GB DDR4.
5. Support 1 * M.2 NVME SSD and 1*SATA (2.5 inch).
5. Intel Iris Xe Graphics, Support Dual Display: 2 * HD Port.
6. Support PXE, Auto Power On, RTC, Wake on LAN.
| Model: SM1185 | |
| PC | |
| CPU | Intel Core 6305, 1.8GHz |
| Intel Core i3-1115G4, 4.1GHz Max boost clock, 6MB | |
| Intel Core i5-1135G7, 4.2GHz Max boost clock, 8MB | |
| Intel Core i7-1185G7E, 4.4GHz Max boost clock, 12MB | |
| BIOS | AMI 8MB UEFI BIOS |
| Chipset | Kaby Lake |
| Memory | Dual Channel SO-DIMM DDR4, Max 64G |
| Storage | 1xM.2 for NVMe 2280 SSD, 1xSATA(2.5 inch) |
| GPU | Intel Iris Xe Graphics |
| Network | Intel RTL 8111H Gigabit Ethernet NIC |
| Wifi | 1*M.2, 802.11a,b/g,n,ac |
| Audio | Realtek HD ALC662 (Line-out, Mic-in) |
| Feature | CPU temperature, system temperature, onboard voltage, watchdog |
| Bluebooth | Supported |
| Operation System | win11 64bit, win10 64bit, Linux 64bit |
| I/O interface | |
| Switch | 1 * Power On/Off |
| Power | 1 * 12v/19v Dc-in |
| USB | 2*USB2.0, 2*USB3.2, 1*Type-c |
| Video | 2 * HD |
| LAN | 2 * RJ45 LAN |
| Audio | 1 * MIC, 1 * SPK |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC +12V ~ +19V |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver Black |
| Operating Environment | |
| Temperature Range | operating: 0 to 50°C, storage: -40 to 80°C |
| Relative humidity | 0%~95% , non-condensing |
| Packing Details | |
| Size | 120 mm*120 mm*20mm (Lx wx H) |
| Weight | Net 2.2kg, Gross 2.5kg |

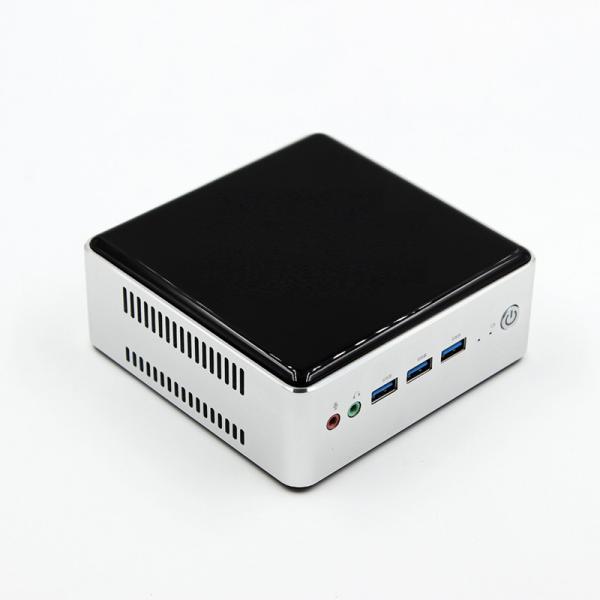

Pictures
FAQ
Q: Can I get some samples?
A: We are honored to offer you samples for quality check, MOQ is 1
set, welcome to order via the link directly.We also provide free
OEM service for your sample order, just feel free to contact our
Sales here.
Q: How does your factory do related quality control?
A: Quality is top priority. We attach great importance to quality
control from the very begining of manufacturing and 1 Years
Wareanty.
Q: How to solve the product problem?
A: Welcome to contact our Sales about any problems, they will
provide nice service to each customer directly.
|   |
