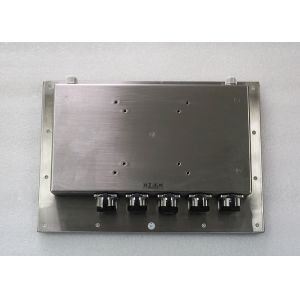

    Smooth Round Stainless Steel Panel PC 12 Inch Industrial Widescreen WIFI Support

    Ask Lasest Price
    Brand Name : SHINHO
    Model Number : SC121W
    Certification : CE, FCC, RoHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Supply Ability :
    Delivery Time :
    • Product Details
    • Company Profile

    Smooth Round Stainless Steel Panel PC 12 Inch Industrial Widescreen WIFI Support


    Smooth Round 12 Inch Stainless Steel Industrial Panel PC Widescreen


    Features


    1. Stainless Steel case, anti-corrosion, shockproof and water-resistive


    2. Widescreen(landscape)


    3. Full Waterproof IP65 connector and accessories


    4. Sunlight readable, wide voltage Optional


    Specification


    Model:SC121W
    PC
    CPUIntel® Celeron J1900, 2.0GHz, quad core, fanless
    ChipsetIntel ValleyView SSA-CUnit
    Memory2G DDR3 (4G, 8G optional)
    Hard Drive Capacity32G SSD
    Hard Drive OptionalSSD: 64G,128GB,256GB
    HDD: 500GB,1TB
    GraphicsCPU Integrated graphics HD Graphics and support 1080p HD photo quality
    AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
    NetworkOnboard Realtek RTL 8111E Gigabit Ethernet controller
    Wireless NetworkWIFI
    I/O Interface2*USB+1*LAN+1*RS232+1*RS422
    Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian etc.
    LCD panel
    Panel size12"
    Resolution1280x800
    Aspect ratio16:10
    Support Color16.7M colors
    Brightness (cd/m²)400 nits (1000 nits, sunlight readable optional)
    Response time10ms
    Contrast ratio1000:1
    View angle80°/80°/80°/80° (R/L/U/D)
    Touch panel
    Touchscreen Type5 wire resistive touch
    Surface Hardness3H
    Luminousness90%
    Touch InterfaceUSB
    Touch response time2ms
    Working Life>35 million times
    Touch options(10 point capacitive touch optional)
    Power Supply
    External Power SupplyAC 100 - 240V
    Working voltage12V (9-36V wide voltage optional)
    Power consumption≤25W
    Enclosure
    MaterialStainless steel case
    ColorSilver
    VESA mounting75×75mm/100×100mm
    IP-gradeFull IP65 waterproof
    Operating Environment
    Temperature RangeOperating: -10 to 60°C, storage :-20 to 80°C
    Relative humidity5%~95% @ 40° C, non-condensing
    Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
    Packing Details
    Net weight5.5KGS
    Gross weight7KGS
    Product Dimension32.29×22.52×5.4cm
    Packing size43×39×19 cm
    AccessoriesPower adapter, waterproof RS232/LAN/USB cable, power cord
    Other
    Mounting (options)1) Provide wall bracket for wall-mounting, VESA 100×100mm
    2) Provide stable metal holder to support the monitor
    CertificatesCE, FCC, RoHs
    Warranty12 months warranty

    Pictures



    Drawing



    Application


    Seaside


    Boat installation


    Ticket machine


    Voting machine


    Control Cabinet


    Face recognition system


    Remote authentication


    Access control attendance


    Intelligent photo album classification


    Self-service medical ticketing machine


    Automatic medical film taking machine
