| Brand Name : | Sihovision |
| Model Number : | SL156W |
| Certification : | CE, FCC, RoHS |
| Price : | Negotiation |
| Payment Terms : | T/T,Paypal,L/C,D/A,D/P,Western Union,MoneyGram, |

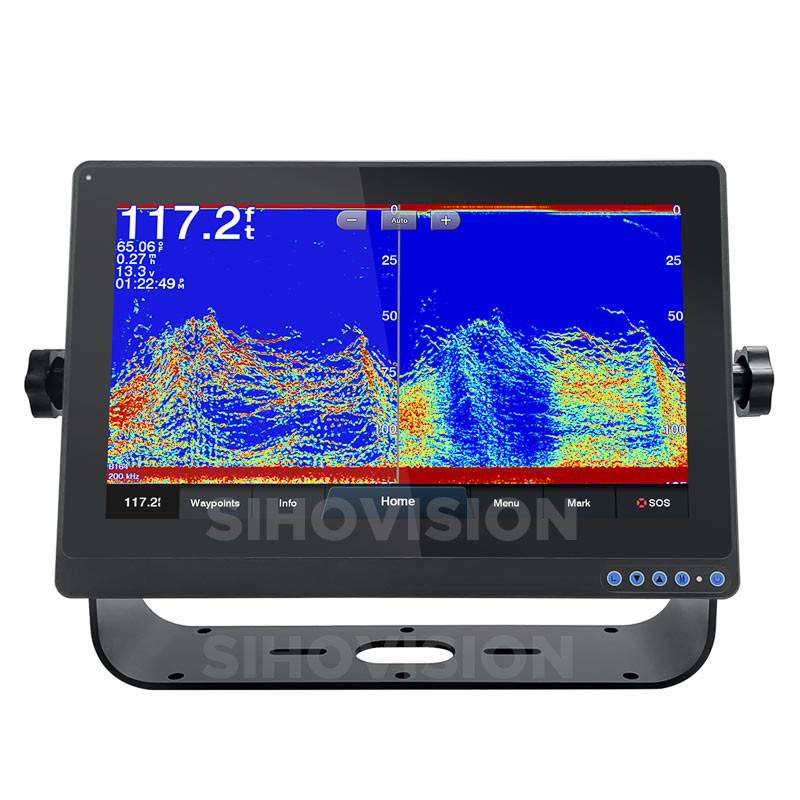

15.6" 1500nits Sunlight Readable Touch Monitor Backup Monitor For
Garmin Panoptix
Features
● Full IP67 waterproof and dustproof
● Industrial LCD panel, full view angle, 1500nits sunlight readable
with automatic light sensing
● 10-points PCAP touch panel, cover with 2mm tempered
glass(Chemically Strengthened) with 7H surface hardness
● Anti-glare surface treatment, Reduce ambient reflections
● Optical bonding, Prevent condensation and fogging inside the
screen and increase transmittance
● With stand and screen protector cover
● Waterproof interface compatible with Garmin MFD
Specification
| Model:SL156W | |
| LCD panel | |
| Panel size | 15.6" |
| Display active area | 343.5(W)×192.8(H) mm |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Brightness (cd/m²) | 1500 nits sunlight readable |
| Brightness control | Light sensor for auto dimming |
| Contrast ratio | 1000:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Support Color | 16.7M |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | Projected Capacitive Touch (up to 10 points ) |
| Surface Hardness | 7H |
| Surface treatment | Anti glare (chemical etching) |
| Luminousness | ≥85% |
| Touch controller IC | ILITEK2510 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Optical Bonding |
| External I/O Ports | |
| Video input | 1*IP67 HDMI |
| Touchscreen interface | 1*IP67 USB |
| Power connector | 1*IP67 DC 9-36V |
| Power Supply | |
| Working voltage | DC 9-36V |
| Power consumption | 30W |
| Power adapter | AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |
| OSD | |
| Function Keys | 5 Keys: Power/Menu/Up/Down/Return |
| Menu Functions | Brightness, Contrast, Screen Setting, Color Temp, OSD Language, Auto Adjust, Reset etc. |
| Support languages | English, Français, Español, Português, Deutsch, Italiano, Nederlands, Svenska, Suomi, Polski, čeština, Русский, 한국어,日本語, 繁體中文,简体中文 |
| Enclosure | |
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing |
| Finish | Front bezel: Sandblasting+Hard Anodizing, UV-protection and
Anti-discoloration treatment Rear housing: powder coated |
| Color | Black, others optional |
| Mounting | Stand |
| IP rating | Full IP67 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 °C ~ 70°C (-4°F ~158°F) Storage: -30 °C~80°C (-22°F ~176°F) |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Net weight | 7.45kg |
| Gross weight | 12.35 kg |
| Product Dimension | 398 x 266.4 x 60 mm |
| Packing info | 67 x 47 x 18 cm/ |
| Accessories | Power plug, Waterproof Power supply, Waterproof USB touch cable, Waterproof HDMI cable |
| Other | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Applications
Restaurant
Self-service kiosk
Gas station
Payment terminal machine
Vehicle
Bus stop
|
