Product Description:
The IP65 Panel PC is a versatile and rugged device designed for
industrial applications, combining high performance with
durability. This Fanless All-in-One Industrial Touch Screen Panel
PC features a 17" panel size housed in a compact product dimension
of 400×332×50mm. Its sleek design and robust construction make it
ideal for use in various industrial environments.
Equipped with a wide power supply range of DC 9V - 36V, this Panel
PC ensures reliable operation even in challenging conditions. The
power flexibility allows for seamless integration into different
setups without compatibility issues, making it a versatile solution
for industrial automation and control systems.
For efficient data storage and fast processing, the IP65 Panel PC
comes with a 128G SSD hard drive. This provides ample storage space
for critical data and applications, ensuring smooth operation and
quick access to information when needed. Combined with 8G DDR5
memory, the Panel PC delivers excellent performance for
multitasking and demanding industrial tasks.
Whether you require a reliable Android Panel PC for specific
applications or a general-purpose industrial computing solution,
this IP65 Panel PC offers a balance of performance and durability.
Its fanless design eliminates the need for additional cooling
components, reducing maintenance requirements and increasing
reliability. The absence of a fan also minimizes noise levels,
making it suitable for quiet industrial settings.
In conclusion, the IP65 Panel PC is a high-quality and feature-rich
device that meets the requirements of modern industrial
environments. With its advanced specifications, including the
Fanless All-in-One design, Industrial Touch Screen capabilities,
and Android compatibility, this Panel PC is a versatile and
reliable solution for a wide range of industrial applications.
Features:
- Product Name: IP65 Panel PC
- Panel Life: 50000 Hours
- Response Time: 5ms
- Power Supply: DC 9V - 36V
- Chipset: Intel® Core I3-1215U
- Certifications: CE, FCC, RoHS
Technical Parameters:
| Model:SC17W |
| PC |
| CPU | Intel® Core I3-1215U, 6 Cores, 8 Threads, Turbo 4.4 Ghz, 10 MB
Smart Cache , Fanless |
| Chipset | SOC |
| Memory | 8G DDR5 |
| Storage Capacity | 128G SSD |
| Graphics | Intel® Iris® Xe Graphics |
| Audio | Onboard ALC897 audio decoding controller |
| Network | 1 x Realtek 8111H/8111G |
| Wireless Network | WIFI optional |
| Expansion Slots | 1xMiniPCIe, WIFI,Bluetooth /4G Expansion Module |
| Preinstalled OS | Windows 10 Pro 64bit |
| Operation System | Support Windows 8/10, Linux, Ubuntu, Debian, etc. |

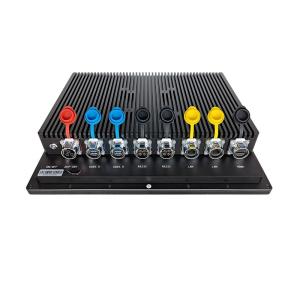

| MI6 metal waterproof interface |
| USB | 2*IP67 USB3.0 |
| COM | 2*IP67 RS232 |
| LAN | 2*IP67 RJ45 |
| Video Outputs | 1*IP67 HDMI |
| Power input | 1*IP67 DC12V, 9-36V DC Optional |
| Other | 1*IP67 Power on/off button |
| LCD panel |
| Screen diagonal | 17" |
| Display active area | 337.92(W)x270.336(H) mm / 13.304x10.643 in |
| Resolution | 1280*1024 |
| Aspect ratio | 5:4 |
| Brightness (cd/m²) | 1000 nits sunlight readable |
| Brightness control | PWM Brightness Adjustment |
| Contrast ratio | 1000:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Support Color | 16.7M colors |
| Backlight | WLED, 50K hours |
| Touch panel |
| Touchscreen Type | Projected Capacitive Touch (up to 10 points ) |
| Surface Hardness | 7H |
| Surface treatment | Anti-Glare |
| Luminousness | ≥80% |
| Touch controller IC | EETI 81 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Optical bonding |
| Touch optional | Resisive touch, non touch, IR touch optional |
| Power Supply |
| Working voltage | DC 12V, 9-36V DC Optional |
| Power consumption | 60W |
| Power adapter | AC 100 ~ 240V input and DC 24V@6.25A MAX output, 150W |
| Enclosure |
| Material | Aluminium alloy |
| Finish | UV-protection and Anti-discoloration treatment |
| Color | Black |
| VESA mounting | VESA mount 75*75/100*100mm, Panel mount |
| IP grade | Full IP67 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment |
| Temperature Range | Operating: -30 °C(-22℉) to 60°C(140℉),
Storage: -30 °C(-22℉) to 70°C(158℉) |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details |
| Product weight | Net weight 7.8kg Gross weight 12kg |
| Product Dimension | 400×332×50mm |
| Packing info | 1pcs/ctn 64×44×16cm 12kg
2pcs/ctn 64*44*31cm 23kg |
| Accessories | Power supply, waterproof USB cables, waterproof LAN cable,
waterproof COM cable, waterproof HDMI cable |
| Other |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
Applications:
When it comes to the IP65 Panel PC product, the SIHOVISION SC17W
stands out as a reliable and versatile option suitable for various
application occasions and scenarios. Originating from China and
holding certifications such as CE, FCC, and RoHS, this IP65 touch
panel PC is designed to meet high standards of quality and
performance.
With a minimum order quantity of 1 and a negotiable price, the
SIHOVISION SC17W caters to both individual and bulk purchase needs.
The packaging details of 64×44×16cm ensure safe and secure delivery
of the product, which typically takes 7 days to reach the
customers. The flexible payment terms including Paypal, L/C, D/A,
D/P, MoneyGram, T/T, and Western Union make transactions convenient
for buyers.
Boasting a supply ability of 5000pcs per month, the SIHOVISION
SC17W IP65 industrial PC is ideal for various settings requiring a
durable and efficient computing solution. The panel life of 50000
hours ensures long-term usability, making it a cost-effective
choice for businesses.
With product dimensions of 400×332×50mm, the 55-inch panel PC
offers a spacious display area for interactive applications.
Powered by a DC 9V - 36V power supply and equipped with an Intel®
Core I3-1215U chipset, this IP65 industrial PC delivers reliable
performance. The quick response time of 5ms enhances user
experience, making it suitable for tasks requiring speed and
accuracy.
Customization:
Product Customization Services for the IP65 Panel PC
Brand Name: SIHOVISION
Model Number: SC17W
Place Of Origin: China
Certification: CE, FCC, RoHS
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 64×44×16cm
Delivery Time: 7 Days
Payment Terms: Paypal, L/C, D/A, D/P, MoneyGram, T/T, Western Union
Supply Ability: 5000pcs/month
Panel Life: 50000Hours
Products Status: Stock
Hard Drive: 128G SSD
Chipset: Intel® Core I3-1215U
Power Supply: DC 9V - 36V
Support and Services:
Our IP65 Panel PC product comes with comprehensive Product
Technical Support and Services to ensure that you have a seamless
experience. Our team of experts is available to assist you with any
technical issues or queries you may have regarding the product.
Whether it's troubleshooting, configuration assistance, or product
recommendations, our Technical Support team is here to help you
every step of the way.
Packing and Shipping:
Product Packaging for IP65 Panel PC:
- The IP65 Panel PC will be securely packaged in a sturdy cardboard
box with sufficient padding to prevent any damage during transit.
- Each unit will be wrapped in protective material to safeguard the
screen and components.
Shipping Information:
- The IP65 Panel PC will be shipped via a reputable courier service
to ensure safe and timely delivery.
- Customers will receive a tracking number to monitor the status of
their shipment.
FAQ:
Q: What is the brand name of this IP65 Panel PC?
A: The brand name is SIHOVISION.
Q: What is the model number of this IP65 Panel PC?
A: The model number is SC17W.
Q: Where is this IP65 Panel PC manufactured?
A: It is manufactured in China.
Q: What certifications does this IP65 Panel PC have?
A: It has CE, FCC, and RoHS certifications.
Q: What are the payment terms accepted for purchasing this IP65
Panel PC?
A: The accepted payment terms are Paypal, L/C, D/A, D/P, MoneyGram,
T/T, and Western Union.
